Name: 0.003mm Micro Gold Plated Tungsten Wire Manufacturer Custom Precision Alloy Wire
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
SKU: TW011
Price: 999 USD
Availability: InStock

Evde > Ürünler > Altınla kaplanmış volfram tel >

0.003mm Micro Gold Plated Tungsten Wire Manufacturer Custom Precision Alloy Wire

0.003mm micro gold plated tungsten wire

custom precision alloy wire manufacturer

gold plated tungsten wire with warranty

Marka adı:

WINNER

Sertifika:

ISO9100

Model numarası:

TW011

Bizimle İletişim

Teklif Et

Ürün Ayrıntıları

Kaplama kalınlığı:

0.0003mm

Malzeme:

Tungsten

Tel Çapı:

0,02 mm/0,03 mm/0,04 mm/0,05 mm/0,06 mm/0,07 mm/0,1 mm/0,2 mm

Uzunluk:

1000/2000 metre

Erime Noktası:

3410 °C

Ürün Kategorisi:

5660°C

Yoğunluk:

19,3 gr/cm3

Elektriksel Direnç:

4,9 μΩ-cm

Vurgulamak:

0.003mm micro gold plated tungsten wire

custom precision alloy wire manufacturer

gold plated tungsten wire with warranty

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Fiyat

999

Ambalaj bilgileri

Rulo, nötr paketleme veya OEM logosu ile

Teslim süresi

5-8 iş günü

Ödeme koşulları

L/C, Western Union, T/T

Yetenek temini

Ayda 100000 rulo

İlişkili Ürünler

Video

OEM ODM 0.003mm Ultra Fine Gold Coated Tungsten Wire For Micro Medical Industry

En İyi Fiyatı Alın

Video

0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor

En İyi Fiyatı Alın

Video

High Purity Tungsten 0.003mm Ultra Fine Gold Plated Wire Low Resistivity Micro Wire

En İyi Fiyatı Alın

Video

0.003mm Micro Gold Plated Tungsten Wire Manufacturer Custom Precision Alloy Wire

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

0.003mm Micro Gold Plated Tungsten Wire Manufacturer Custom Precision Alloy Wire

Professional manufacturer supply 0.003mm micro gold plated tungsten wire, strict dimensional tolerance, support custom specification for precision alloy industry application.

Product Specifications

Material	Tungsten
Purity	Wu≥ 99.99%
Gold-plated thickness	0.3um
Wire diameter	0.02mm/0.03mm/0.04mm/0.05mm/0.06mm/0.07mm/0.1mm/0.2mm
Length	1000/2000 meter (cut from roll)

Gold Plated Tungsten Wire Properties (Theoretical)

Compound Formula	W
Molecular Weight	183.84
Appearance	Metallic wire
Melting Point	3410 °C
Boiling Point	5660 °C
Density	19.3 g/cm³ (25 °C)
Solubility in H₂O	N/A
Electrical Resistivity	4.9 μΩ-cm, (20 °C)
Exact Mass	183.951 g/mol
Monoisotopic Mass	183.951 g/mol

Key Features

Shiny golden surface condition - brighter than black or white tungsten wire
Exceptional high temperature resistance and high melting point
Low coefficient of thermal expansion
Superior corrosion resistance compared to ordinary tungsten wire

Applications

Electrode in photocopiers, replacing corrosion-resistant tungsten wire and tungsten aluminum wire
Ideal corrosion-resistant electron emission material
Applications in high-energy physics, meteorology, and other scientific research fields

Product Images

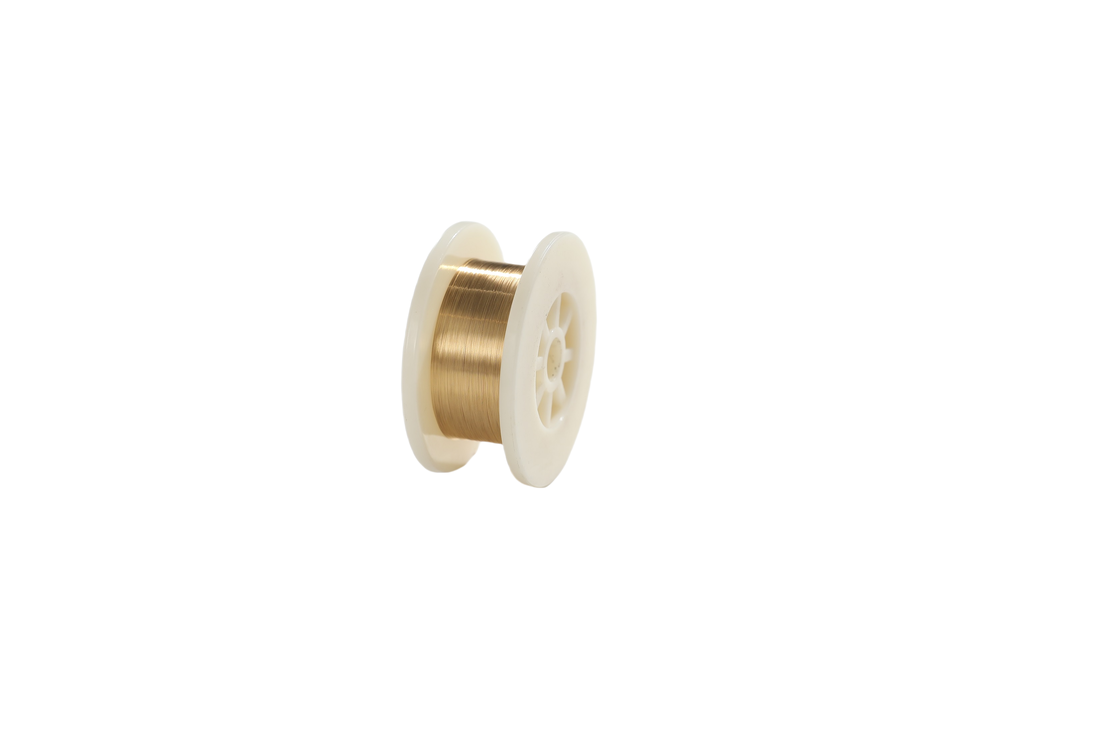

Gold-plated tungsten wire roll close-up

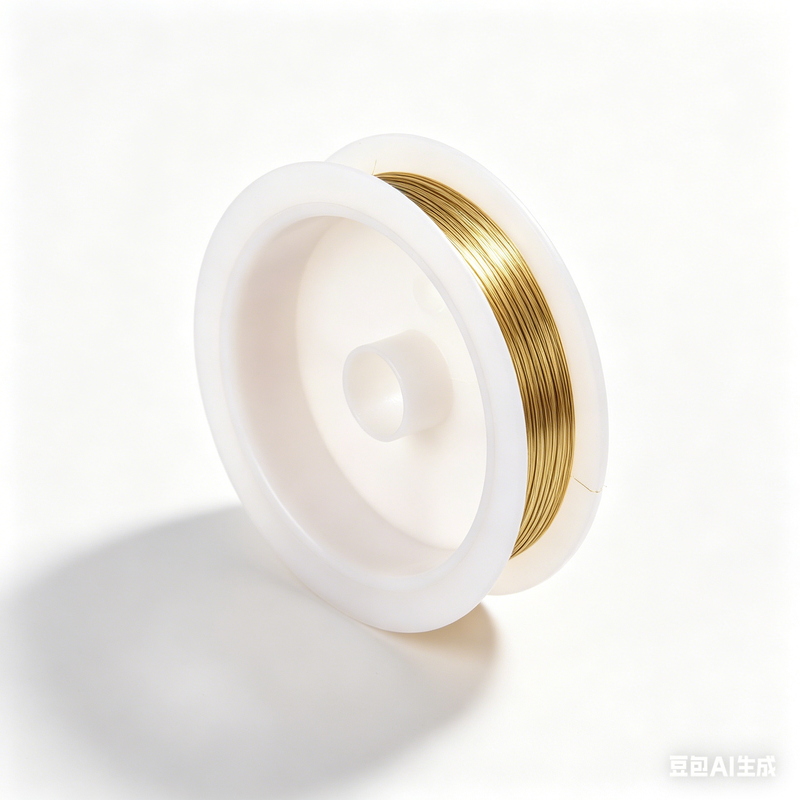

Gold-plated tungsten wire sample

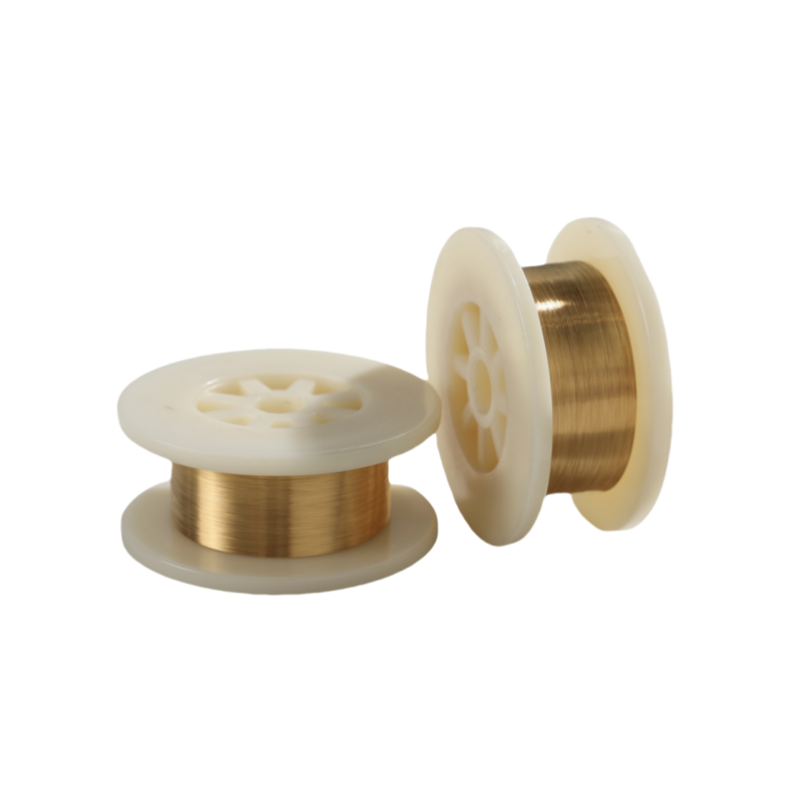

Diameter comparison showing various thicknesses

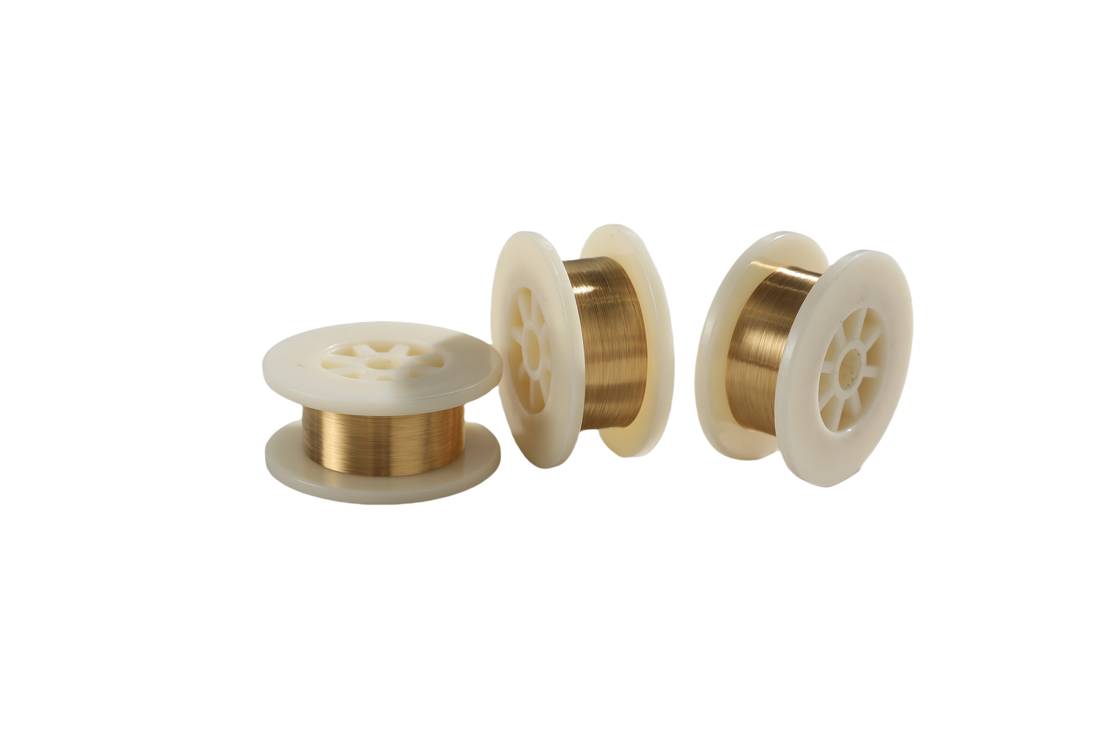

Spool packaging
